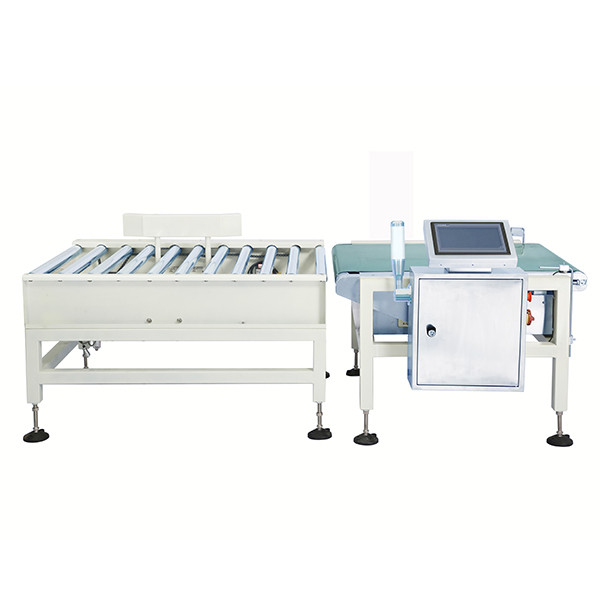

Hight quality checkweigher machine for automation

Hight quality checkweigher machine for automation

Hight quality checkweigher machine for automation
Hight quality checkweigher machine for automationHight quality checkweigher machine for automationHight quality checkweigher machine for automation
CategoriesLarge range(Weight rang:10g-100KG)
BrandDADI
ModelDCL
Weight checking range0.1-10KG
Weight checking accuracyabout1g
Resolution0.5g or 1 g
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information
Parameter
DCM series checkweigher machine
Product model
DCL6040L10
DCM8040L15
DCM10040L20
Resolution
1g
1g
1g
Weight checking range
0.05-10kg
0.05-15kg
0.05-20kg
Weight checking ac
curacy
±3-5g
±5-10g
±8-15g
Belt speed
5-80m/min
Standardtechnical
parameters
Power supply: standard single-phase AC200-240V, 50/60HZ, 0.4KW, optional three-phase AC380V, 50/60HZ,
0.4KW
Air Source: Dry 0.5-0.8 MPa (5-8 bar)
Temperature: Use temperature: 0 40 Storage temperature: - 20 60.
Humidity: 10-90% RH, no condensation
Protection Level: IP30, IP54, IP65 are optional
Noise: <75db
Machine weight: 60kg
Working Height: 700± 50mm (confirmed when ordering other heights)
This is a title

In addition to providing the weight signal of the product, the feedback control automatic checkweigher can also output a feedback signal to the packaging filling equipment according to the difference between the average weight and the nominal weight, and automatically adjust the average weight to make the sum set. The weight is consistent, thereby reducing production costs.
